Anóid comhdhlúthad maignéisiam
Anóidí comhdhlúthaithe maignéisiam, atá oiriúnach le húsáid i malartóirí teasa, i mboscaí uisce comhdhlúthadáin, i dtúr fuaraithe, i n -idirghabhálacha agus i taobh istigh umar.

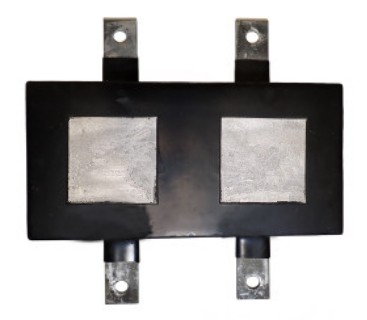

Tá an anóid chomhdhlúthaithe ar fáil mar lom nó plastisol brataithe. Tá an sciath plastisol (clóiríd pholaivinile) ar na taobhanna, ar na foircinn, agus ar dhromchlaí faying mar sciath bhacainn reatha den scoth.
W sraith anóid
|
. |
Ualach |
Leithead |
Airde |
Fad |
|
H-22 |
10kg (22 lb) |
508mm (20 ") |
51mm (2. 0 ") |
254mm (10 ") |
|
H-12W |
5.4kg (12 lb) |
229mm (9 ") |
51mm (2. 0 ") |
229mm (9 ") |
|
H-24W |
10.9kg (24 lb) |
229mm (9. 0 ") |
51mm (2. 0 ") |
457mm (18. 0 ") |
|
H-44W |
20kg (44 lb) |
229mm (9. 0 ") |
101.6mm (4 ") |
482mm (19. 0 ") |

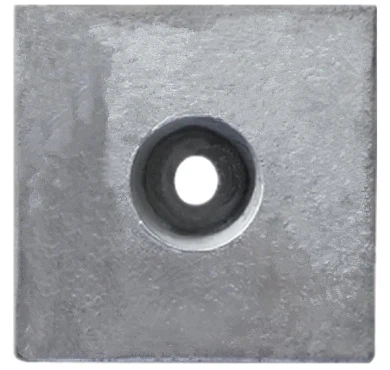

Anóid cruth cearnógach
|
. |
Ualach |
Fad |
Leithead |
Airde |
|
6SX3 |
2.7kg (6 lb) |
2 {0 3mm (8.0 ") |
76mm (7. 0 ") |
1 {0 1.6mm (4.0 ") |
|
7.5S |
3.4kg (7.5lbs) |
2 {0 3mm (8.0 ") |
2 {0 3mm (8.0 ") |
51mm (2. 0 ") |
|
15S |
6.8kg (£ 15) |
2 {0 3mm (8.0 ") |
2 {0 3mm (8.0 ") |
1 {0 1.6mm (4.0 ") |
Anóid aráin
|
. |
Ualach |
Fad |
Leithead |
Airde |
|
Seoladh 10- |
4.5kg (10 lb) |
3 {0 5mm (12.0 ") |
152.4mm (6. 0 ") |
76.2mm (3. 0 ") |
|
Seoladh 5- |
2.3kg (£ 5) |
254mm (1 {0. 0 ") |
127mm (5. 0 ") |
63.5mm (2.5 ") |
|
. |
{0. 7kg (1.5lbs) |
228.6mm (9. 0 ") |
76.2mm (3. 0 ") |
34.9mm ({1-3/8 ") |
